φ46 PM LINEAR STEPPING MOTOR

Product PM stepper motor

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.

option:

Inquiry Contact

Parameter

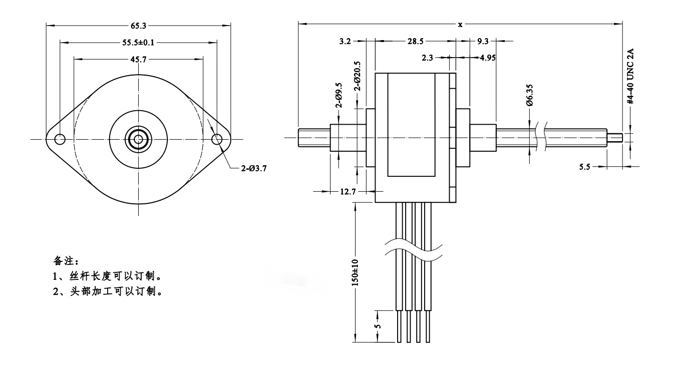

Overall Dimensions
Download
Cooperation

1. SPECIFICATIONS

Winding		Unipolar/Bipolar
Type		Non-Captive, External
Step Angle		7.5
Voltage	V	5	12
Current/phase	mA	1000	410
Resistance/Phase	Ω	5	29
Inductance/Phase	mH	9	52
Travel per step Avail	mm	0.0127
		0.0254
		0.0508

NOTE：The motor can be designed with customized request

Screw diameter Optional① 6.35 ② 4.77（mm）

Lead Optional① 0.6096、1.0、1.2192、1.27、2.4384、2.54、4.0、8.0......（mm）；② 0.635、1.27、2.54、5.08、10.16 ......（mm）

Travel per step Avail =(Step Angle/360)* Lead（mm）

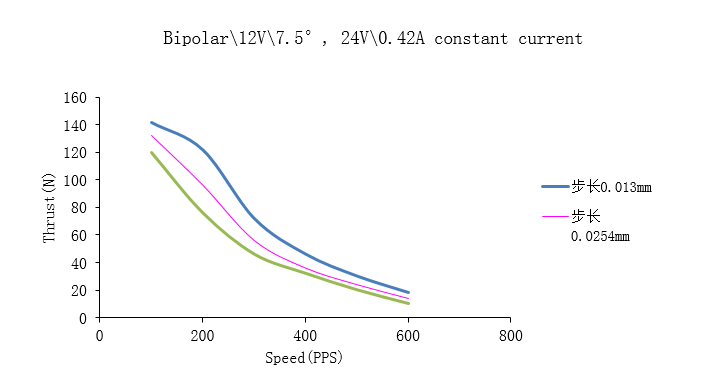

2. STEP SPEED AND THRUST CURVE

Motor size

Download
