Standard usage status
1. Rated voltage: 48 VDC
2. Operating voltage range: 24V-60 VDC
3. Rated load (CW) : 20 N.m
4. Operation direction: CW/CCW from the direction of the exit shaft
5. Use posture: the direction of the exit axis is horizontal or vertical
6. Standard operating temperature: 25±5℃
7. Operating temperature range: -20 ~ 50℃
8. Standard operating humidity: 65%
9. Humidity range: 5 ~ 85%, no condensation
10. Storage temperature range: -30 ~ 70℃
11. Insulation Class: Class B

Electrical characteristics
1. No load speed: 200 rpm±10%
2. No load current: 2 Arms
3. Rated load: 20 N.m
4. Rated load speed: 180rpm±10%
5. Rated load phase current (peak) : 13Apk±10%
6. Peak load: 60 N.m
7. Maximum load phase current (peak) : 43Apk±10%
8. Insulation resistance/stator winding: DC 500VAC, 100M Ohms

9. High voltage/stator and housing: 600 VAC, 1s, 2mA
10. Motor back potential: 17Vrms/krpm±10%
11. Torque constant: 2.36N.m/Arms

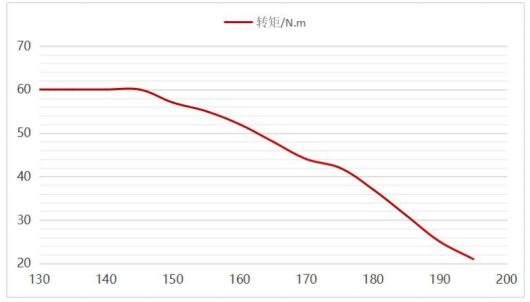

12. T-N curve

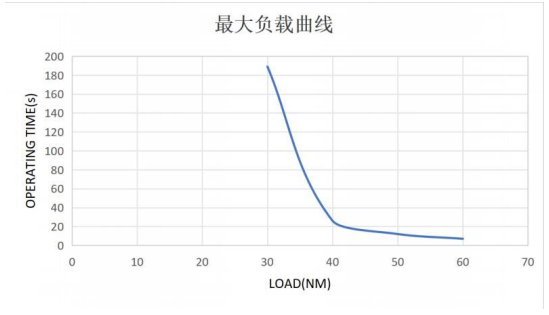

13. Maximum overload curve
Test conditions: Ambient temperature: 25℃
Winding limit temperature: 130℃ (this is the constraint temperature, the actual is 180 degrees) Speed: 24rpm

Test data

Drive product specifications

Driver interface recommended brand and model

Main devices and specifications
